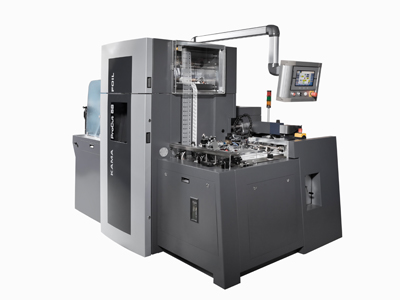

The KAMA ProCut 58 with new feeder
A new updated version of the ProCut 58 die-cutter for digitally printed sheets in the quarter-size format, either for conventional or cut to size is now available with a Heidelberg sheet feeder, a modern touch panel and new software. The format has been increased by 50 mm so the machine can now handle sizes up to 580 x 400 mm.
The new feeder optimises the paper feed, the suction head is fast and easy to adjust and the entire feed area is easily accessible. The redesigned software speeds up the adjustment of the AutoRegister, which aligns every sheet with 0.1 mm precision. The menu navigation has been simplified and the operating interface of the 16:9 touch panel comes with a clearer layout and pictograms, making all the functions and features intuitively accessible and language independent.
Important for its application in folding carton production is the precise alignment that the ProCut 58 with AutoRegister achieves. Sheets that are cut after they have been printed, for example sheets that are cut down from B2 to B3 can be finished with precision at up to 6000 sheets per hour. With a footprint of 4.5 square metres, this machine offers added value in a small space and with a low investment cost.
