Rotocontrol has introduced two machines to aid the production of face masks, which have seen a spike in demand as a result of the global coronavirus pandemic.

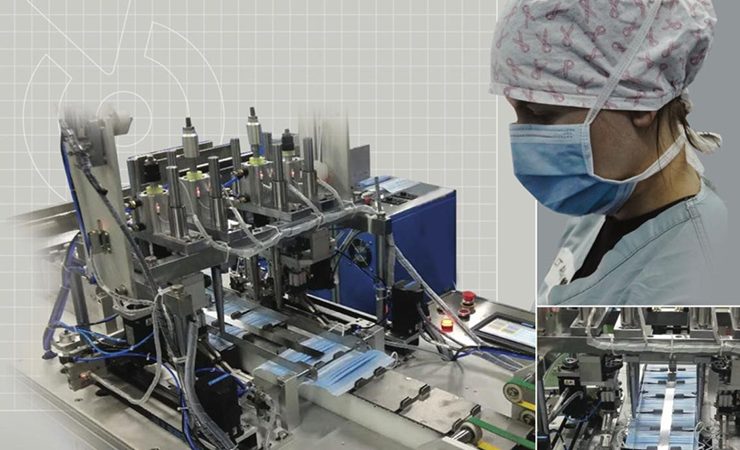

The Ecoline FM is designed to produce flat masks for general front-line workers, manufacturing and the public, with an advanced version providing an end-to-end production line for medical masks typically worn by nurses and doctors.
With a simple design, the Ecoline FM is capable of automatic production of 90-110 masks a minute. Three layers of material are first laminated, folded and seamed. A crimping tool then ultrasonically welds the two sides to the seal, and a die-cutting tool cuts and forms the side seal. Finally, the mask is conveyed to two earlobe string welding stations and then on to the assembly line for collection. The advanced version for automatic production of medical masks features high-tech ultrasonic welding technology with reliable and convenient operation from initial material feed to finished product. The line consists of automatic feeding of reel and nose clip, mask body formation with ultrasonic assembly, automatic assembly, automatic folding and welding of mask, die cut and finished product ejection, and waste removal.
Other features include support for up to six layers of non-woven cloth rolls, automatic tension control of raw materials ensuring balanced tension, and ergonomic design with easy maintenance.
Rotocontrol managing director Marco Aengenvoort said, ‘Both Ecoline FM machines will help traditional label printers and other niche market manufacturers respond to spiralling demand for general and medical face masks by diversifying into mask production. It’s an opportunity to utilise their production expertise and quickly expand their manufacturing infrastructure already in place.’
Both machines are now available internationally through Rotocontrol and its global agent network. Each model comes with a one-year warranty. Lead-time to airfreight, land and install an Ecoline FM machine is 4-6 weeks, and Rotocontrol can supply all the raw materials to produce the masks.
